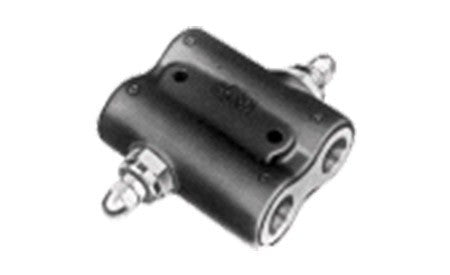

127120 | Hydraulic Relief Valve RC series SRCH

The Cross SRC series dual differential type relief valves are used to protect equal size cylinders or motors from external or shock loads. Oil which passes from one relief valve flows directly to the opposite side of the circuit, thus preventing cavitation. The swing circuit on a backhoe is a good application example.

Features:

• 500 to 3000 psi adjustment range
• 30 GPM flow rating
• 1500 to 3000 psi range, set at 2000 psi
• 3/4" NPTF

NOTE: åÊProduct images are for representation only.
